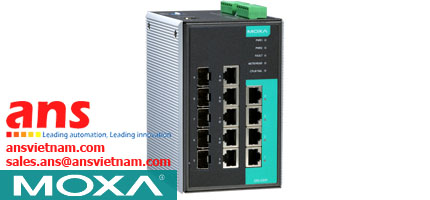

Managed EDS-G509 Series Moxa vietnam


Features and Benefits

Download Moxa 2015 IES brochure!

  • 4 10/100/1000BaseT(X) ports plus 5 combo (10/100/1000BaseT(X) or 100/1000BaseSFP slot) Gigabit ports
  • Fiber optic options for extending distance and improving electrical noise immunity
  • Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Supports MXstudio for easy, visualized industrial network management

Introduction

The EDS-G509 is equipped with 9 Gigabit Ethernet ports and up to 5 fiber optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of video, voice, and data across a network quickly. Redundant Ethernet Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase system reliability and the availability of your network backbone. The EDS-G509 series is designed especially for communication demanding applications, such as video and process monitoring, shipbuilding, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.

FAQ

Is Your Network Infrastructure Ready for the IIoT?



The Industrial Internet of Things (IIoT) trend aims to improve efficiency and productivity by connecting different devices together as well as collecting and analyzing large volumes of data to offer accurate information. However, before reaping the benefits of the IIoT, users need to ensure that the correct infrastructure is in place. To make sure your network is ready for the IIoT, check out five of the most frequently mentioned questions..........more

FAQ_cover

Technology
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
Software Features
Management IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control
Filter 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2, GMRP
Redundancy Protocols STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation
Security RADIUS, TACACS+, SSL, SSH, Broadcast Storm Protection, Port Lock
Time Management SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based)
Industrial Protocols EtherNet/IP, Modbus/TCP
MIB MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Switch Properties
Priority Queues 4
Max. Number of VLANs 64
VLAN ID Range VID 1 to 4094
IGMP Groups 256
MAC Table Size 8 K
Packet Buffer Size 1 Mbit
Interface
RJ45 Ports 10/100/1000BaseT(X) auto negotiation speed
Fiber Ports 100/1000BaseSFP slot
Console Port RS-232 (RJ45 connector)
DIP Switches Turbo Ring, Master, Coupler, Reserve
Alarm Contact 2 relay outputs with current carrying capacity of 1 A @ 24 VDC
Digital Inputs 2 inputs with the same ground, but electrically isolated from the electronics.
• +13 to +30 V for state “1”
• -30 to +3 V for state “0”
• Max. input current: 8 mA
Power Requirements
Input Voltage 12/24/48 VDC, redundant dual inputs
Operating Voltage 9.6 to 69 VDC
Input Current 0.69 A @ 24 VDC
Overload Current Protection Present
Connection 2 removable 6-contact terminal blocks
Reverse Polarity Protection Present
Physical Characteristics
Housing Metal
IP Rating IP30 protection
Dimensions 87.1 × 135 × 107 mm (3.43 × 5.31 × 4.21 in)
Weight 1510 g (3.33 lb)
Installation DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications
Safety UL 508, EN 60950-1
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: Signal: 10 V
IEC 61000-4-8
Rail Traffic EN 50121-4
Marine DNV, GL, LR, ABS, NK
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
Note: Please check Moxa’s website for the most up-to-date certification status.
MTBF (mean time between failures)
Time 598,659 hrs
Standard Telcordia (Bellcore), GB
Warranty
Warranty Period 5 years
