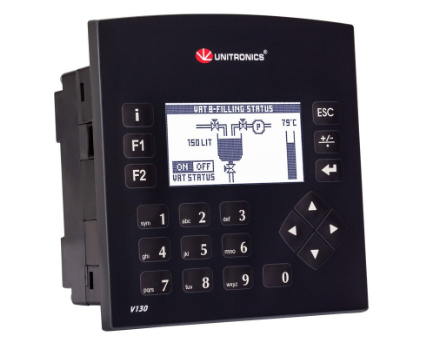

Vision130™- Programmable Logic Controller + Integrated HMI

Palm-size, powerful programmable  logic controller (PLC) with built-in black & white LCD 2.4″ graphic display, keypad & onboard I/O configurations, expands up to 256 I/Os.

PLC
  • I/O options include high-speed, temperature and weight measurement
  • Auto-tune PID, up to 24 independent loops
  • Recipe programs and data logging via Data Tables
  • Micro SD card – log, backup, clone and more
  • Date & time-based control

HMI

  • 1024 user-designed screens
  •  400 images per application
  • HMI graphs & Trends
  • Built-in alarm screens
  • Text String Library – easy localization
  • Memory and communication  monitoring  via HMI – No PC needed

Communication

  • TCP/IP via Ethernet
  • Web server: Use built-in HTML pages or design complex pages to view and edit PLC data via the Internet
  • Send e-mail function
  • SMS messaging
  • GPRS/GSM
  • Remote Access utilities
  • MODBUS protocol support
  • BACnet, M-bus – via 3rd-party converter
  • CANbus: CANopen, UniCAN, J1939 & more
  • DF1 Slave
  • SNMP agent V1
  • FB Protocol Utility: enables serial or TCP/IP communications with 3rd-party device; barcode readers, frequency converters, etc
  • Ports: supplied with 1 RS232/RS485; 2 ports may be added: 1 Serial/Ethernet/Profibus and 1 CANbus
V130-33-TR20 12 Digital Inputs, configurable via wiring to include 2 Analog, and 3 HSC/Shaft-encoder Inputs, 6 Relay   Outputs, 2 high-speed npn Transistor Outputs
V130-33-TR6 8 Digital Inputs, configurable via wiring to include 2 Analog (current/voltage) and 1 HSC/Shaft-encoder Input, 4 Analog Inputs (current), 6 Relay Outputs, 2 high-speed npn Transistor Outputs
V130-33-R34 24VDC, 20 Digital Inputs, 2 Analog/Digital Inputs, 12 Relay Outputs, RS232/485
V130-33-TR34 24VDC, 17 Digital inputs, 3 HSC with up to 200kHz ,2 Analog/ Digital inputs, 8 Relay outputs, 4 npn- HSO- 5Hz-200kHz ( 3 PTO),RS232/RS485.
V130-33-RA22 24VDC, 8 Digital Inputs, 2 Analog/Digital Inputs, 2 TC/PT/Digital Inputs, 8 Relay Outputs, 2 Analog Outputs, RS232/485
V130-33-TRA22 24VDC, 5 Digital inputs, 1 Digital/ HSC, 2 Analog/ Digital inputs, 2 PT100/ Thermocouple or 4 Digital inputs, 4 Relay outputs, 4 npn- HSO- 5Hz-200kHz ( 2 PTO),2 Analog outputs, RS232/RS485
V130-33-T2 24VDC, 10 Digital Inputs, 2 Analog/Digital Inputs, 12 Transistor Outputs, RS232/485
V130-33-T38 24VDC, 20 Digital Inputs, 2 Analog/Digital Inputs, 16 Transistor Outputs, RS232/485
V130-33-TA24 24VDC, 8 Digital Inputs, 2 Analog/Digital Inputs, 2 TC/PT/Digital Inputs, 10 Transistor Outputs, 2 Analog Outputs, RS232/485
V130-33-B1 24VDC, no on-board I/Os, can be connected to expansion modules, RS232/RS485
V130-J-TR20 12 Digital Inputs, configurable via wiring to include 2 Analog, and 3 HSC/Shaft-encoder Inputs, 6 Relay Outputs, 2 high-speed npn Transistor Outputs
V130-J-TR6 8 Digital Inputs, configurable via wiring to include 2 Analog (current/voltage) and 1 HSC/Shaft-encoder Input, 4 Analog Inputs (current), 6 Relay Outputs, 2 high-speed npn Transistor Outputs
V130-J-R34 24VDC, 20 Digital Inputs, 2 Analog/Digital Inputs, 12 Relay Outputs, RS232/485
V130-J-TR34 24VDC, 17 Digital inputs, 3 HSC with up to 200kHz ,2 Analog/ Digital inputs, 8 Relay outputs, 4 npn- HSO- 5Hz-200kHz ( 3 PTO),RS232/RS485.
V130-J-RA22 24VDC, 8 Digital Inputs, 2 Analog/Digital Inputs, 2 TC/PT/Digital Inputs, 8 Relay Outputs, 2 Analog Outputs, RS232/485
V130-J-TRA22 24VDC, 5 Digital inputs, 1 Digital/ HSC, 2 Analog/ Digital inputs, 2 PT100/ Thermocouple or 4 Digital inputs, 4 Relay outputs, 4 npn- HSO- 5Hz-200kHz ( 2 PTO),2 Analog outputs, RS232/RS485
V130-J-T2 24VDC, 10 Digital Inputs, 2 Analog/Digital Inputs, 12 Transistor Outputs, RS232/485
V130-J-T38 24VDC, 20 Digital Inputs, 2 Analog/Digital Inputs, 16 Transistor Outputs, RS232/485
V130-J-TA24 24VDC, 8 Digital Inputs, 2 Analog/Digital Inputs, 2 TC/PT/Digital Inputs, 10 Transistor Outputs, 2 Analog Outputs, RS232/485
V130-J-B1 24VDC, no on-board I/Os, can be connected to expansion modules, RS232/RS485
