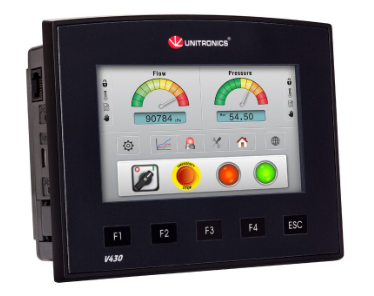

Vision430™- PLC Controller with integrated HMI Touchscreen

Advanced PLC controller integrated with a 4.3″ wide-aspect, color touchscreen. Includes onboard I/O configurations; expands up to 512 I/Os.

PLC

  • I/O options include high-speed, temperature & weight measurement
  • Auto-tune PID, up to 24 independent loops
  • Recipe programs and data logging via Data Tables
  • Micro SD card – log, backup, clone & more
  • Date & time-based control

HMI

  • 1024 user-designed screens and 1000 images per application
  • HMI graphs— color-code Trends
  • Built-in alarm screens
  • Text String Library – easy localization
  • Memory and communication  monitoring  via HMI – No PC needed

Communication

  • TCP/IP via Ethernet
  •  Web server: Use built-in HTML pages or design complex pages to view and edit PLC data via the Internet
  • Send e-mail function
  • SMS messaging
  • GPRS/GSM
  • Remote Access utilities
  • MODBUS protocol support
  • BACnet, M-bus – via 3rd-party converter
  • CANbus: CANopen, UniCAN, SAE J1939 and more
  • DF1 Slave
  • SNMP Agent V1
  • FB Protocol Utility: enables serial or TCP/IP communications
  • With 3rd-party device; barcode readers, frequency converters, etc
  • Ports: supplied with mini-USB programming port  and 1 RS232/rs485; 2 ports may be added: 1 Serial/Ethernet/Profibus and 1 CANbus



V430-J-B1 Flat Front
24VDC, no on-board I/Os, can be connected to expansion modules, RS232/RS485
V430-J-R34 Flat Front
24VDC, 20 Digital Inputs, 2 Analog/Digital Inputs, 12 Relay Outputs, RS232/RS485
V430-J-RA22 Flat Front
24VDC, 8 Digital Inputs, 2 Analog/Digital Inputs, 2 TC/PT/Digital Inputs, 8 Relay Outputs, 2 Analog Outputs, RS232/RS485
V430-J-T2 Flat Front
24VDC, 10 Digital Inputs, 2 Analog/Digital Inputs, 12 Transistor Outputs, RS232/RS485
V430-J-T38 Flat Front
24VDC, 20 Digital Inputs, 2 Analog/Digital Inputs, 16 Transistor Outputs, RS232/RS485
V430-J-TA24 Flat Front
24VDC, 8 Digital Inputs, 2 Analog/Digital Inputs, 2 TC/PT/Digital Inputs, 10 Transistor Outputs, 2 Analog Outputs, RS232/RS485
V430-J-RH2 Flat Front
24VDC, 10 Digital Inputs, 2 Analog/Digital Inputs, 6 Relay Outputs, RS232/RS485
V430-J-TR34 Flat Front
24VDC, 17 Digital inputs, 3 HSC with up to 200kHz,2 Analog/ Digital inputs, 8 Relay outputs,  4 npn- HSO- 5Hz-200kHz ( 3 PTO),RS232/RS485.
V430-J-RH6 Flat Front
24VDC, 6 Digital Inputs, 2 Digital/Analog (current/voltage) Inputs, 4 Analog (current), 6 Relay Outputs, RS232/485
V430-J-TRA22 Flat Front
24VDC, 5 Digital inputs, 1 Digital/ HSC, 2 Analog/ Digital inputs, 2 PT100/ Thermocouple or 4 Digital inputs, 4 Relay outputs, 4 npn- HSO- 5Hz-200kHz ( 2 PTO), 2 Analog outputs, RS232/RS485.
