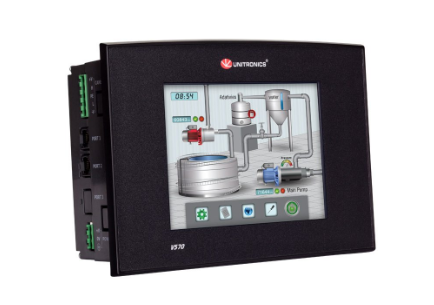

Vision570™- Programmable Logic Controller + Built-in Elegant HMI

Advanced programmable logic controller from the back—big & high resolution, 5.7″ color touchscreen from the front. Snap-in I/O modules for an All-in-One controller; expands up to 1000 I/Os.

PLC

  • I/O options include high-speed, temperature & weight measurement
  • Auto-tune PID, up to 24 independent loops
  • Recipe programs and data logging via Data Tables
  • SD card – log, backup, clone & more
  • Date & time-based control

HMI

  • Up to 1024 user-designed screens
  • 1000 images per application
  • HMI graphs – color-code Trends
  • Built-in alarm screens
  • Text String Library – easy localization
  • Memory and communication  monitoring  via HMI – No PC needed

Communications

  • TCP/IP via Ethernet
  • Web server: Use built-in HTML pages or design complex pages to view and edit PLC data via the Internet
  • Send e-mail function
  • SMS messaging
  • GPRS/GSM
  • Remote Access utilities
  • MODBUS protocol support
  • BACnet, M-bus – via 3rd-party converter
  • CANbus: CANopen, UniCAN, SAE J1939 and more
  • DF1 Slave
  • SNMP Agent V1
  • FB Protocol Utility: enables serial or TCP/IP communications
  • With 3rd-party device; barcode readers, frequency converters, etc
  • Ports: supplied with 2 isolated RS232/RS485 and 1 CANbus; In Vision570: 1 USB programming port; 1 port may be added for serial/Ethernet
V570-57-T20B 5.7" Color Touchscreen, TFT (320X240), CAN, 2 RS232/484
V570-57-T34 5.7" Color Touchscreen, TFT (320X240), CAN, 2 RS232/484, with 12 Digital Inputs, 2 Current Analog Inputs, 16 Transistor Outputs (HE10 I/O connectors)
